  • Two-speed operation for reduced operator fatigue (except P-39)
  • 4-way valving on the P-84 and P-464 for operation of double-acting cylinders
  • External load release valve on remaining models for single-acting cylinder operation
  • Internal pressure relief valve for overload protection
  • Large oil capacity to power a wide range of cylinders or tools
  • Contact Enerpac for applications where operating pressure is less than 10% of pressure rating.
Unit of Measure

Pump Type

 N/A Two speed

Usable Oil Capacity

 N/A 134 cu. inch

Pressure Rating - 1st Stage

 N/A 500 psi

Pressure Rating - 2nd Stage

 N/A 10000 psi

Oil Displacement per Stroke - 1st Stage

 N/A 1.00 cu. inch

Oil Displacement per Stroke - 2nd Stage

 N/A 0.15 cu. inch

Maximum Handle Effort

 N/A 77 lbs.

Piston Stroke

 N/A 1.00 inches

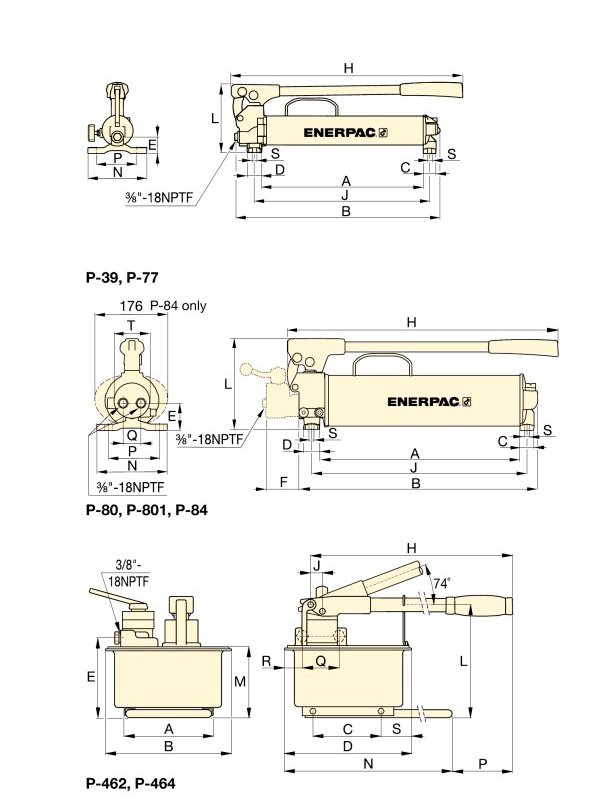

Dimension A

 N/A 16.83 inches

Dimension B

 N/A 20.12 inches

Dimension C

 N/A 1.18 inches

Dimension D

 N/A 1.38 inches

Dimension E

 N/A 2.17 inches

Dimension H

 N/A 23.50 inches

Dimension J

 N/A 18.11 inches

Dimension L

 N/A 7.65 inches

Dimension N

 N/A 5.91 inches

Dimension P

 N/A 4.76 inches

Dimension Q

 N/A 1.65 inches

Dimension S

 N/A .33 inches

Dimension T

 N/A 2.93 inches

Weight

 N/A 23.6 lbs.

Ship Weight

 N/A 28.0 lbs.
^
