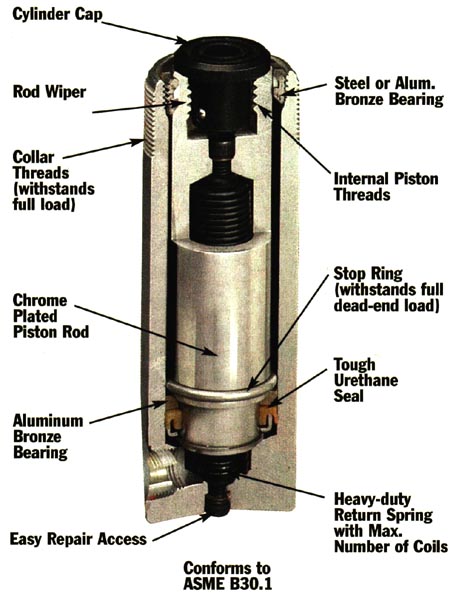

  • Rugged, high quality cylinder used for fittings and pressing
  • Aluminum bronze bearing reduces wear caused by off-center loads.
  • Maximum sized springs speed piston return and increase spring life.
  • Solid steel cylinder body for durability.
  • Chrome plated piston rod resists wear and corrosion.
  • Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
  • Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
  • A 3/8 Inch NPTF female half coupler is standard.
Unit of Measure

Cylinder Capacity

 N/A 55 tons

Stroke

 N/A 6.25 inches

Oil Capacity

 N/A 69.0 cu. inch

Retracted Height - A

 N/A 11 1/8 inches

Extended Height - B

 N/A 17 3/8 inches

Outside Diameter - C

 N/A 5 inches

Collar Thread - D

 N/A 5 - 12 inches

Piston Collar Thread Length - E

 N/A 2 3/16 inches

Base to Port - F

 N/A 1 3/8 inches

Piston Rod Diameter - H

 N/A 3 1/8 inches

Piston Rod Protrusion - K

 N/A 1/8 inches

Bore Diameter

 N/A 3 3/4 inches

Cylinder Effective Area

 N/A 11.04 sq. inch

Internal Pressure at Cap.

 N/A 9959 psi

Tons at 10000 psi

 N/A 55.2

Product Weight

 N/A 51 lbs.

Ship Weight

 N/A 53 lbs.

Standard Pack Qty

 N/A 1
^
